CTT 215 - Halvautomatisk strekkfilmmaskin

EAN-kode: 6600215 Artikkelnr.: Pris på forespørsel

Cyklop CTT 215 - Halvautomatisk strekkfilmmaskin. Pris på forespørsel

  • Produktinfo
  • Service / Service avtale
  • Video av produktet Cyklop CTT 215
  • Brosjyre
  • Brosjyre CTT 215 med hestesko
  • Tekniske data
  • Garanti betingelser
  • Produktanmeldelser (0)

Semi-automatisk strekkfilmmaskin modell CTT 215

PLC-styret med fem individuelle programmer
Utstyrt med Cyklops patentert forstrekksaggregat, Power EcoStretch



Semi-automatisk strekkfilmmaskin av høy kvalitet
Velegnet til gods med uregelmessig form

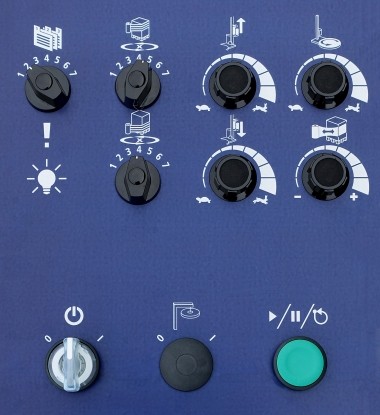

Betjeningspanelet er lett å forstå
Utstyrt med Cyklops patentert forstrekksaggregat 30-300 %
Valgt forstrekk holdes konstant, noe som garanterer konsekvent lavt forbruk av folie



Tekniske data:
Dreieskivehastighet inn til ni omdreininger pr. minutt, justerbar
El-forsyning 240 V, 50 Hz, 10 A
Maskinen har tetningsgrad IP 54
Ingen lufttilkobling nødvendig



Funksjoner:
Foliespenningen kontrolleres automatisk
Justerbar folieoverlapping
Rask og enkel skifte av folie
Automatisk høydesensor
Sammenleggbar mast for enkel transport
Hukommelsen inneholder fem programmer



Pallmål:
Dreieskive Ø 1640mm (valg 2000mm)
Pallhøyde 2200mm (standard maskin)
Pallvekt maks. 2000kg



Strekkfilm:
Bredde 500 mm – Maks. diameter 250mm
Anbefalt tykkelse 15 - 35 my
Kjernediameter 76 mm



Tilleggsutstyr:
Rampe
Tandem (dobbel) dreieskive
Topplate
Forlenget mast til 2600mm
Innstøpningsring
Dreieskive 2000mm
Galvanisert underdel
Lav temperatur
mv.



Rett til endringer forbeholdes



CTT 215 - Halvautomatisk stäckfilmsmaskin

Patent approved system from Cyklop

6 individuella program Försträckning: 30-300% med  Botten- /toppvarv: 1-7 Sträckfilmar oregelbundet formade gods. Använd gaffeltruck/pallyftare för att lasta  på godset. Operatören startar sträckfilmningen, skär och fäster filmen manuellt.

Försträckningsgrad på enheten:

30, 60, 80, 110, 145, 200, 250 eller 300% inställbar

Pallegods maks:

Längd:

1 200 mm.

Bredd:

1 000 mm

Höjd:

2 200 mm.

Vikt:

2 000 kg

Filmbredd: 500 mm

Diameter: max. 250 mm

Diameter, kärna: 76 mm

1-fas, 240V, 50 Hz



Våre strekkfilmmaskiner trenger som alle andre typer maskiner service.

Serviceintervalene avhenger selvfølgelig av bruk.

Våre serviceteknikere hjelper deg med å finne riktig interval.

Vi tilbyr også faste serviceavtaler hvor vi uforbindtelig tar kontakt med kunden i forhold til vurdert interval.

Vi gjør oppmerksom på at våre kunder har erfart at en serviceavtale ofte blir langt billigere en akuttte reperasjoner og driftsstans.

Ta gjerne kontakt med Johnny Tyler på telefon 92432438 for mer informasjon.

Brosjyre: 215 h-shop



Brosjyre:

CTT 215HS



Teknisk data
Kapacitet:
20 - 50 pallar/dag
Dagligen:
< 50 pallar
Observera att det dagliga pallflödet endast anger modeller som kan
vara lämpliga. Fakta som t ex pallvikt, höjd och konfigurationer
måste beaktas när man väljer den bästa maskinmodellen för din användning.
Godshöjd: Max. 2 200 mm; min. 750 mm när man använder en topplatta.
Vridbordets diamter: 1 660 mm
Vridbordets hastighet: Max 12 varv/min. Mjukstart och stopp.
Försträckningsgrad påPatent approved system from Cyklop enheten. 30, 60, 80, 110, 145, 200, 250 eller 300% inställbar
Pallvikt: 1500 kg
Sträckfilmningsprogram: 5 program, 1 option (tillval)
Maskinvikt: 380 kg, vikten kan variera beroende på optioner
Ljudnivå: < 70 dB(A), (Cast film, 9 varv/min)
Arbetstemperatur: +5°C to +35°C i en torr tempererad miljö
Sträckfilm:
Alla Cyklopmaskiner klarar en filmtjocklek på 9-35 (my) i både
blåst och cast kvalitet, försträckt eller vanlig film. Observera
att det bästa resultatet och lägsta kostnad per pall alltid kommer
att erhållas med hjälp av högkvalitativa filmer oavsett tjocklek.

Filmbredd: 500 mm
Diameter: max. 250 mm
Diameter, kärna: 76 mm

Elanslutning: 1-fas, 240V, 50 Hz
Spänning: 24V
Skyddsnorm: IP 54

Liability for defects; Warranty

Pursuant to the provisions of this Warranty Cyklop Teknik AB (herein after referred to as “CT”) shall remedy any defect or non-conformity in the Works resulting from faulty design, materials or workmanship. Under no event CT assumes a guarantee for properties and conditions.

CT’s liability is limited to defects in the works, which appear within a period of 12 months with a daily use for 1 shift (8 hours) from transfer of risk or taking over of the goods. If the daily use exceeds the agreed use, this warranty period shall be reduced proportionately. If taking-over has been delayed for reasons for which the purchaser is responsible, CT’s liability for defects shall not be extended beyond 18 months after delivery.

The purchaser shall without undue delays notify CT in writing, describing the defect, of any defect that appears. Such notice shall under no circumstance be given later than 2 weeks after the expiry period given under sect. 2. If the purchaser fails to notify CT in writing of a defect within the time limit set forth in this clause, he loses his right to have the defect remedied.

The expiration of the period stated under Section 2 is suspended with the occurrence of the defect and continues with the effected remedy of the defect.

Provided that the defect may cause serious damage, the purchaser shall immediately inform CT in writing. The purchaser shall bear the risk of damage resulting from his failure so to notify.

On receipt of the notice CT shall remedy the defect without undue delay at his own cost. Provided the expected costs for CT to remedy the defect are unreasonably high, CT may assign a third party to remedy the defect. The purchaser shall remedy minor defects after consultation with CT. The purchaser shall at his own expense arrange for any dismantling and reassembly of equipment other than the works to the extend that this is necessary to remedy the defect.

If the purchaser has given notice to CT and no defect is found for which CT is liable, CT shall be entitled to compensation for the costs incurred as a result of the notice.

Wear and tear parts are excluded from liability. Condition precedent to CT’s liability is the regular, proper and verifiably professionally carried out maintenance, the use of CT materials and wear and spare parts as well as the appropriate storage of the goods. No remedy of a defect shall be considered to be an acknowledgement.

If the purchaser has given such notice as mentioned in Section 3 and no defect is found for which CT is liable is found, CT shall be entitled to compensation for all costs incurred as a result of this notice.

Cyklop Teknik will compensate the customer for his expenses in connection with   repairs, travels etc. with a fix sum of SEK 400 per hour or 3 500 per day inclusive travel costs.

This compensation will be paid if:

- The purchaser at first has been in contact with the CT Technical

Phone Support and that the problem couldn’t be solved by phone

- CT has been informed and accepted that the customer intends to

send his personal to the end-user.

- The purchaser has sent a correctly filled in “Claim form” and that CT

has accepted the claim as warranty. The claim form can also be sent

to CT after the customer have been at the end-user
