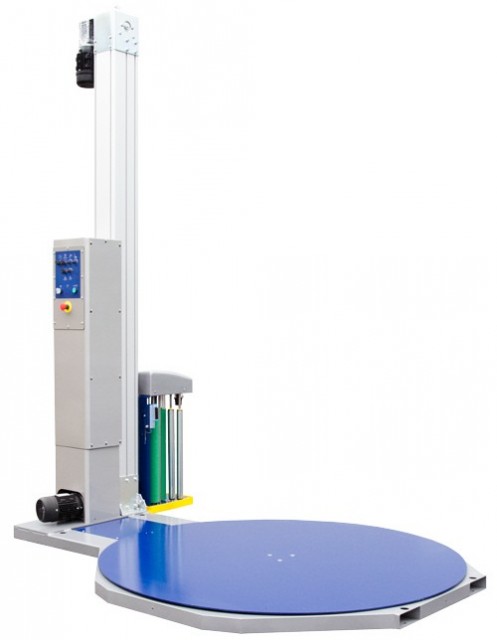

CTT 210 - Cyklop Halvautomatisk strekkfilmmaskin

Artikkelnr.: Pris på forespørsel

Cyklop CTT 210 - Halvautomatisk strekkfilmmaskin. Pris på forespørsel

  • Produktinfo
  • Tilbehør og artikkelnummer
  • Brosjyre
  • Tekniske data
  • Garanti betingelser
  • Produktanmeldelser (0)

Halvautomatisk strekkfilm maskin

6 individuella program
Försträckning: 1-210% med  Patent approved system from CyklopBotten-/ toppvarv: 1-7

Husk at prisene er inklusive moms, som bedrift betaler du kun investeringsavgift.


Sträckfilmar oregelbundet formade gods. Använd gaffeltruck/ pallyftare för att lasta på godset. Operatören startar stäckfilmningen, skär och fäster filmen manuellt.

Alla Cyklopmaskiner klarar en filmtjocklek på 9-35 (my) i både blåst och cast kvalitet, försträckt eller vanlig film. Observera att det bästa resultatet och lägsta konstnad per pall alltid kommer att erhållas med hjälp av högkvalitativa filmer oavsett tjocklek.

Filmbredd: 500 mm Diameter: max. 250 mm Diameter, kärna: 76 mm

1-fas, 240V, 50Hz

Pallgods, max:
Längd: 1 200 mm. Bredd: 1 000 mm
Höjd: 2 200 mm. Vikt: 2 000 kg

1-fas, 240V, 50Hz





Alle priser i tabellen er eks. mva

Ta kontakt på telefon: 64923730 / 93225286 for komplette tilbud.

PART NO. ARTICLE NAME MAX LOAD HEIGHT MAX LOAD WEIGHT TABLE Ø GROSS PRICE
MACHINE (mm) (kg) (mm) (D.currency)
  CTT 205 STD 2200 2000 1640 49 000
  CTT 205 HS 2200 ??? 1640 ?

TOP PLATE       (D.currency)
  TOP PLATE ROUND 2200 2200 - - 23 000
      - - ?
  TOP PLATE Customized height   - - 29 000
  TOP PLATE RECTANGULAR 2200   - - 24 000
  TOP PLATECustomized height   - - 29 000
  TOP PLATE DOOR   - - 35 000
  TOP PLATE XTD DOOR   - - 38 000

OPTIONS   (mm) (kg) (mm) (D.currency)

  TWINPACK 1675 ? 2200 2000 1640 ?
  EXTENDED MAST 2600 2600 - - 1 950
  CUSTOMIZED HEIGHT MAST - - - 6 800
  TABLE Ø2200 - 2000 2200 ?
  CUTTING - - - 7 500
  EXTENDED CHASSIS +500mm - - - 5 000
  SCALE - - - 25 000
  3 PHASE - - - 3 500
  STRING ROLLER - - - 2 500
  STRING ROLLER HS - - - 2 500
  TABLE FOR WORKTAINER - - 1640 8 000
  CONVEYOR - 900 - 26 000
  ELEVATION FEET - - - 3 500
  ACCESS RAMP STD - - 1640 3 500
  EXT ACCESS RAMP - - 1640 5 000
  ACCESS RAMP Ø2200 - - 2200 5 000
  FLOOR PROTECTION RING STD - - 1640 6 000
  FLOOR PROTECTION RING Ø2200 - - 2200 6 000
210080 TOP SHEET DISPENSER FLOOR - - - 3 500
210081 TOP SHEET DISPENSER WALL - -
-
3 500



PART NO. ARTICLE NAME MAX LOAD HEIGHT MAX LOAD WEIGHT TABLE Ø GROSS PRICE
  LOW TEMP - - - 4 000
  LOW TEMP - - - 11 000
  ELECTRIC FEEDING FOR CONVEYOR - - - ?
    - - - ?
  ULTRASONIC SENSOR - - - 4 000

PACKAGING (mm) (kg) (mm) (D.currency)
  PACKAGING SEMI 1640 - - - 0
  PACKAGING SEMI 1640 LONG * - - - 0
  PACKAGING SEMI 2200 ** - - - 0
  PACKAGING SEMI 1640 CRATE - - - 0
  PACKAGING SEMI 1640 LONG CRATE - - - 0
  PACKAGING SEMI 2200 CRATE - - - 0
Teknisk data
Kapacitet:
20 - 50 pallar/dag
Dagligen:
< 50 pallar
Observera att det dagliga pallflödet endast anger modeller som kan
vara lämpliga. Fakta som t ex pallvikt, höjd och konfigurationer
måste beaktas när man väljer den bästa maskinmodellen för din användning.
Godshöjd inkl pall: Max. 2 200 mm; min. 750 mm när man använder en topplatta.
Pallvikt: Max. 2 000 kg
Vridbordets diameter: 1 660 mm
Vridbordets hastighet: Max 12 varv/min, inställbar. Mjukstart och stopp.
Försträckningsgrad på
Patent approved system from Cyklop
 enheten.
1, 25, 45, 65, 90, 135, 170 eller 210% inställbar
Pallvikt: 2 000 kg
Sträckfilmningsprogram: 5 standardprogram, 1 option (tillval)
Maskinvikt: 380 kg, vikten kan variera beroende på optioner
Ljudnivå: < 70 dB(A), (Cast film, 9 varv/min)
Arbetstemperatur: +5°C till +35°C i en torr tempererad miljö
Sträckfilm:

Alla Cyklopmaskiner klarar en filmtjocklek på 9-35 (my) i både

blåst och cast kvalitet, försträckt eller vanlig film. Observera att det bästa

resultatet och lägsta konstnad per pall alltid kommer att erhållas med hjälp

av högkvalitativa filmer oavsett tjocklek.

Filmbredd: 500 mm
Diameter: max. 250 mm
Diameter, kärna: 76 mm


Elanslutning: 1-fas, 240V, 50Hz
Spänning: 24V
Skyddsnorm: IP 54

Liability for defects; Warranty

Pursuant to the provisions of this Warranty Cyklop Teknik AB (herein after referred to as “CT”) shall remedy any defect or non-conformity in the Works resulting from faulty design, materials or workmanship. Under no event CT assumes a guarantee for properties and conditions.

CT’s liability is limited to defects in the works, which appear within a period of 12 months with a daily use for 1 shift (8 hours) from transfer of risk or taking over of the goods. If the daily use exceeds the agreed use, this warranty period shall be reduced proportionately. If taking-over has been delayed for reasons for which the purchaser is responsible, CT’s liability for defects shall not be extended beyond 18 months after delivery.

The purchaser shall without undue delays notify CT in writing, describing the defect, of any defect that appears. Such notice shall under no circumstance be given later than 2 weeks after the expiry period given under sect. 2. If the purchaser fails to notify CT in writing of a defect within the time limit set forth in this clause, he loses his right to have the defect remedied.

The expiration of the period stated under Section 2 is suspended with the occurrence of the defect and continues with the effected remedy of the defect.

Provided that the defect may cause serious damage, the purchaser shall immediately inform CT in writing. The purchaser shall bear the risk of damage resulting from his failure so to notify.

On receipt of the notice CT shall remedy the defect without undue delay at his own cost. Provided the expected costs for CT to remedy the defect are unreasonably high, CT may assign a third party to remedy the defect. The purchaser shall remedy minor defects after consultation with CT. The purchaser shall at his own expense arrange for any dismantling and reassembly of equipment other than the works to the extend that this is necessary to remedy the defect.

If the purchaser has given notice to CT and no defect is found for which CT is liable, CT shall be entitled to compensation for the costs incurred as a result of the notice.

Wear and tear parts are excluded from liability. Condition precedent to CT’s liability is the regular, proper and verifiably professionally carried out maintenance, the use of CT materials and wear and spare parts as well as the appropriate storage of the goods. No remedy of a defect shall be considered to be an acknowledgement.

If the purchaser has given such notice as mentioned in Section 3 and no defect is found for which CT is liable is found, CT shall be entitled to compensation for all costs incurred as a result of this notice.

Cyklop Teknik will compensate the customer for his expenses in connection with   repairs, travels etc. with a fix sum of SEK 400 per hour or 3 500 per day inclusive travel costs.

This compensation will be paid if:

- The purchaser at first has been in contact with the CT Technical

Phone Support and that the problem couldn’t be solved by phone

- CT has been informed and accepted that the customer intends to

send his personal to the end-user.

- The purchaser has sent a correctly filled in “Claim form” and that CT

has accepted the claim as warranty. The claim form can also be sent

to CT after the customer have been at the end-user
